2036 Aluminum Pipe

Product Name :2036 Aluminum Pipe

Grade: 1000, 2000, 3000, 5000, 6000, 7000 Series, etc.
Tolerance: ±1%
Size: According to the customer's requests

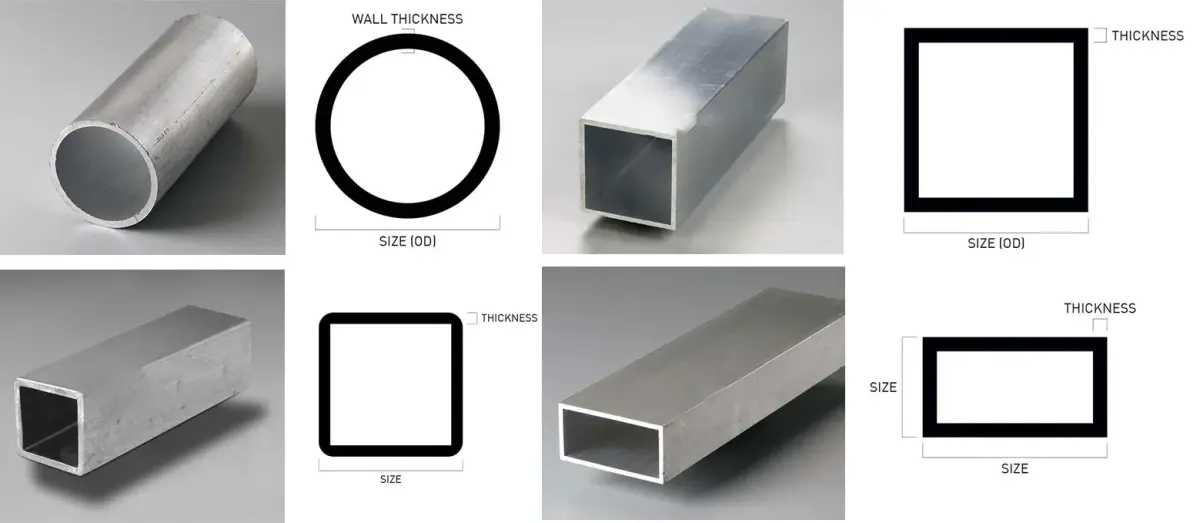

Shape: Round, Square, Flat
Standards: AISI, ASTM, DIN, JIS, GB, SUS, EN, etc

Low Maintenance
High Performance
Affordable Excellence
Swift Delivery
Professional After-Sales Support

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Description:
Introducing the 2036 Aluminum Pipe, a premium choice for durability and performance. Crafted from high-grade aluminum, it boasts exceptional strength-to-weight ratios, ensuring reliability in a variety of applications. Ideal for construction, automotive, and industrial use, our 2036 pipes are designed to meet the highest standards of quality and efficiency.

Product Specifications:

Product Name	Aluminum Pipe Tube
Standard	AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc
Wall Thickness	0.5-150 mm or Customized according to customer requirements
Outer Diameter	2-2500mm or Customized according to customer requirements
Length	1-12m or Customized according to customer requirements
Thickness Tolerance	±0.01mm
Surface	Anodized, Oxidation, electrophoresis coating, fluorine carbon spraying, powder coating, wood grain transfer printing, mechanical drawing, mechanical polishing, sandblasting, Polished, hair line, brush, Mill finished, Bright finish, paper interleaved
Grade	1000 Series, 2000 Series, 3000 Series, 5000 Series, 6000 Series, 7000 Series, etc.
Material	1060, 1200, 1100, 2024, 2124, 3003, 3004, 5050, 5083, 5154, 5454, 5652, 5086, 5056, 5754, 6061, 6062, 6063, 7075, etc
MOQ	1 Ton
Shipment Time	Within 5-15 workdays after receiving deposit or L/C
Application	1.Construction: Aluminum pipes are used for structural support, handrails, scaffolding, and architectural elements. 2. Automotive: They are used in exhaust systems, radiator tubes, and air intake systems. 3. Aerospace: Aluminum pipes are utilized in aircraft structures, fuel systems, and hydraulic systems. 4. Marine: They are used in boat rails, mast sections, and marine plumbing systems. 5. HVAC: Aluminum pipes are employed in ductwork and air distribution systems. 6. Industrial: They find applications in manufacturing equipment, conveyor systems, and pneumatic systems
Price Terms	FOB, EXW, CIF, CFR, DDP
Capacity	300,000 tons/year

OM SIZE	OUTSIDE DIA (D)	WALL THICKNESS IN MM (T)							METRIC SIZE
OM SIZE	OUTSIDE DIA (D)	SCH 10S	SCH 10	SCH40 S	STD Weight	SCH 40	SCH 80s	SCH 80	METRIC SIZE
1/4 “	13.72	1.65		2.24	2.24	2.24	3.02	3.02
3/8″	17.15	1.65		2.31	2.31	2.31	3.2	3.2
1/2″	21.34	2.11		2.77	2.77	2.77	3.73	3.73	15
3/4″	26.67	2.11		2.87	2.87	2.87	3.91	3.91	20
1″	33.4	2.77		3.38	3.38	3.38	4.55	4.55	25
1 1/4″	42.16	2.77		3.56	3.56	3.56	4.85	4.85	32
1 1/2″	48.26	2.77		3.68	3.68	3.68	5.08	5.08	40
2″	60.32	2.77		3.91	3.91	3.91	5.54	5.54	50
2 1/2″	73.02	3.05		5.16	5.16	5.16	7.01	7.01	65
3″	88.9	3.05		5.49	5.49	5.49	7.62	7.62	80
3 1/2″	101.6	3.05		5.74	5.74	5.74	8.08	8.08	90
4″	114.3	3.05		6.02	6.02	6.02	8.56	8.56	100
5″	141.3	3.4		6.55	6.55	6.55	9.52	9.52	125
6″	168.27	3.4		7.11	7.11	7.11	10.97	10.97	150
8″	219.07	3.76		8.18	8.18	8.18	12.7	12.7	200
10″	273.05	4.19		9.27	9.27	9.27	12.7	15.08	250
12″	323.85	4.57		9.52	9.52	10.31	12.7	17.47	300
14″	355.6	4.77	6.35		9.52	11.12		19.05	350
16″	404.6	4.77	6.35		9.52	12.7		21.44	400
18″	457.2	4.77	6.35		9.52	14.27		23.82	450

2036 Aluminum Pipe

Why choose us

Combined with customer needs to customize product packaging, provide strong support for logistics in complex environment.We are a professional trading company of metal products and have been cooperating with many well-known manufacturers. Our products can meet every unique requirement for customers. We provide customized service. We can support clients to do quality inspection if needed. We can provide competitive price, good quality control, purchasing advice. Welcome consulting and ordering!

Production And Shipping:
